CRISPR Stable Knockout Cell Line Generation
 »


CRISPR Stable Knockout Cell Line Generation
Order Online
Order by Contact
Cat.No.: C208
Quantity: Basic Service Package
Price: Inquire
Email: order@abmGood.com
Phone: 604-247-2416 (Local), 1-866-757-2414 (Toll free)
Fax: 604-247-2414
Payment: or Purchase Order Number
More info: Additional Information Regarding Orders



Orders of this service are subjected to the completion of a Material Transfer Agreement (MTA) by the purchasing individual/institution for each order. If you have any questions regarding this, please contact us at technical@abmgood.com. The end user acknowledges that the Materials provided under abm’s Material Transfer Agreement (MTA) does not grant a license for commercial use or imply any ownership rights of any intellectual property rights relating to the Materials.

Please note that if the gene to be knockout may be essential to cell survival, it is up to the end-user to proceed with the services. abm is unable to guarantee cell survival in these cases and will only attempt to rescue the clones under these conditions. abm is not accountable for cell survival if rescuing the clones (instructions to be provided customers) is unsuccessful. If customer chooses to proceed, abm will provide a hemizygous pool as the default deliverable to compensate for any lethal effects (unless otherwise requested).
Service Details

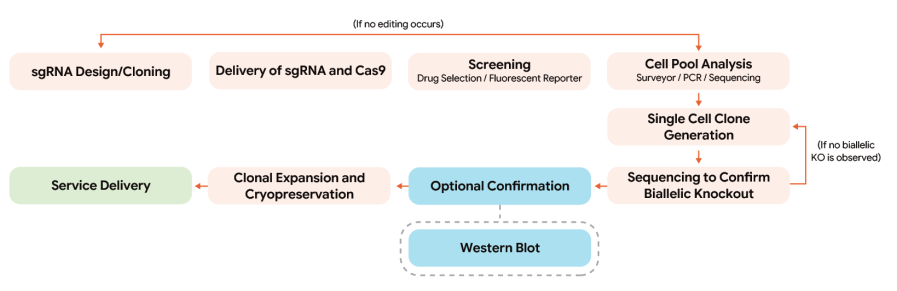

Our Basic Package (C208) Includes Deliverables Lead Time
  1. Select from any of the listed cell lines (pre-determined easy to transfect cell lines)*
  2. sgRNA vector design, construction & delivery into cells
  3. Clonal screening and selection
  4. Screening & validation of knockout by Sanger sequencing**
  5. Expansion & cryopreservation of selected clone(s)
  6. Microbial/sterility testing
Sequence verified knockouts (at least 1 clone, 2 vials per clone)**, microbial/sterility tested with a service report. 24-29 weeks^^

Add-On Services^ Quantity Cat. No. Price
Cell Line of Your Choice for Gene Editing# 1 Cell Line C141 $800.00
WT Control Cell Line Expressing Cas9 for Comparison
(50% discount for academic customers if ordered with the basic package)
1 Cell Line C142 $1,590.00
Additional Clones 1 Clone C143 $250.00
Additional Vials of Delivered Clones 1 Vial C144 $80.00
Validation Service by Western Blot (Up to 10 Clones)## 1 Service C145 $975.00
Off-Target Analysis by Whole Genome Sequencing Per Clone C146 $4,000.00
Additional rounds of selection and screening by Sanger Sequencing 1 Screening C147 $835.00
CRISPR-Cas9 Targeted Amplicon-Seq 1 Service IA00100 $600.00
STR Profiling of WT and Knock-out cells
(50% discount if ordered with the basic package)
1 Service C287 $150.00
***A deposit and MTA is required to initiate all CRISPR Cell Line projects

* Choose from HEK293, HEK293T, A549, HeLa, MDCK, A375, HepG2, HT1080 or U87MG. These cell lines are available as Cas-9 expressing versions or parental version. Cas9 expressing version will be used by default.If the parental version is preferred, please request prior to order placement.
**This pricing is valid for a single gene knockout for diploid loci only.
#Customer is required to provide atleast 2 million cells, 1L of propagation media/any special coated flasks if needed (if cells need DMEM or RPMI, ABM will supply media). Also, the cell line must tolerate single cell cloning and display adequate transfection and transduction efficiency.
##Pre-validated antibody needs to be provided by customer with appropriate positive control (preferably with supporting data).
^All “add on” services need to be indicated prior to order placement as the project design will need to be finalized prior to start of the service.
^^ Final Lead time may vary depending on actual growth rate of cell line while expanding from single cell.
Please note that if the gene to be knocked-out may be essential to cell survival, it is up to the end-user to proceed with the services. abm is unable to guarantee cell survival in these cases and will only attempt to rescue the clones under these conditions. abm is not accountable for cell survival if rescuing the clones (instructions to be provided customers) is unsuccessful.

The Clustered Regularly Interspaced Short Palindromic Repeats (CRISPR) system offers cutting edge RNA-Guided endonuclease technology for highly specific and customizable genome editing. With the use of a target sequence specific guide RNA, as well as the highly specific and programmable CRISPR associated nuclease (Cas9), abm offers an efficient and targeted genome editing service with minimal off-target effects.



You determine the gene of interest for knockout in the desired cell line and we can do the rest.

Using CRISPR to develop a biallelic LIF knockout in Mouse Colon Carcinoma Cells
  • LIF locus in a Mouse Colon Carcinoma Cell Line, was knocked out using CRISPR targeted genome editing.
  • Surveyor assay and sequencing results showed genome editing.
  • After monoclonal selection biallelic knockout was confirmed by sequencing.


Phase #1: Cas9 and sgRNA Delivery
  • Three sgRNA were designed against mouse LIF locus (Mus musculus, NM_008501). Software analysis was performed to ensure the sgRNA had no predicted off targets binding sites. The selected sgRNA design was then cloned into the pLenti-U6-sgRNA-SFFV-Cas9-2A-Puro All-in-One lentivector (Figure 1).
  • Recombinant Lentiviruses were packaged using abm’s second generation Lentiviral packaging system. A multiplicity of infection (MOI) of 5 was used to transduce the cells.


Figure 1. pLenti-U6-sgRNA-SFFV-Cas9-2A-Puro lentivector is an all-in-one vector for co-expressing sgRNA and Cas9 in mammalian cells. Expression of sgRNA is driven by the U6 promoter, a strong constitutive Pol III promoter. An SFFV promoter drives expression of the Cas9-2A-Puro cassette. By using the Cas9-2A-Puro cassette, cells can be directly screened for expression of Cas9, as they will be resistant to Puromycin.


Phase #2: First Round of Colony Screening for Edited Clones
  • Cell colonies are isolated after puromycin selection. Genomic DNA was extracted and the surveyor assay was performed to confirm genomic editing of the LIF locus.
  • A single band in a surveyor assay at the wild-type (WT) size indicates no editing has occurred; two smaller bands (that sum to the length of the WT) indicate editing has taken place.
  • The surveyor assay (Figure 2) indicated that Colony 3 and 6 were edited; colony 2 was not edited; and colony 1 was inconclusive.


Figure 2. The surveyor assay indicated that Colony 3 and 6 were edited; colony 2 was not edited; and colony 1 was inconclusive.


Phase #3: Sequence Analysis of the Edited Colonies
  • PCR products from Colonies 3 and 6 were further analyzed via Sanger Sequencing to determine the nature of the knockout (Figure 3).
  • For colony 3 only one mutant sequence was detected, indicating that these cells are likely only heterozyotic knockouts. In colony 6 two different mutant sequences were detected.


Figure 3. For colony 3 only one mutant sequence was detected, indicating that these cells are likely only heterozyotic knockouts. In colony 6 two different mutant sequences were detected.


Phase #4: Second Round of Selection for Monoclonal Biallelic Knockout Clones
  • Colony 6 was serial diluted into 96 well plates for monoclonal selection. Genomic DNA was extracted from these clones (i.e. 6a, 6b..), PCR amplified, cloned and sequenced.
  • Of the colony 6 clones, sequencing showed that only clone 6a had a frameshift mutation in both alleles (Figure 4). A frameshift mutation disrupts the open reading frame, resulting in nonsense mediated decay of mRNA transcript.


Figure 4. Clones 6a, 6b and 6d all showed biallelic editing. Only clone 6a had frame shift mutations in both alleles. No WT sequences were detected in all subclones.

  • Further sequencing of clone 6a confirmed that only two mutant alleles were present, the 2 bp and 4 bp deletions, and that no WT or other mutations were detected (Figure 5).


Figure 5. Further sequencing of 6a confirmed biallelic knock-out. No WT sequences were detected.


Phase #5: Confirmation of Knockout by Next Generation Amplicon Sequencing
  • With next generation sequencing hundreds of thousands of alleles can be sequenced at once, resulting in a more robust dataset. By contrast Sanger sequencing is only feasible for 1-100 clones and therefore it can miss a large proportion of the population.
  • Next generation sequencing was performed at each stage of selection to evaluate knockout (Figure 6). Before editing, only WT sequences were observed. After the first round of selection colony 6 showed a mixture of edited (70%) and WT (30%) sequences. Finally after monoclonal selection, clone 6a showed only edited sequences with no WT alleles present.


Figure 6. Next Generation Sequencing for CRISPR Knockout screening. A) Before knockout only WT sequences are detected. B) After Cas9 and sgRNA delivery, the first round of selection shows a mixed distribution of indel and WT sequences. C) After the second round of selection only knockouts remain.
Product Documents
Product References
FAQs
Submit a new question:
  Question:
  Email:
What is the lead time for a knockout service?
3-4 months for a single gene knockout.
What should customers provide for this service?
Please supply the cells for this service. For frozen cells, please ship at least 2 vials (at least 10^6 each) on dry ice. An alternative method is to send us two T25 flask of live cells per sample, at 90% confluency. The flasks should be filled with complete medium without any air bubbles and at room temperature. Please ensure that the sterilization procedure is strictly observed. To avoid delays over the weekend, we recommend shipping the cells on a Monday or a Tuesday. Frozen cells are preferred over live cells.

If your cell line already contains an antibiotic resistance marker, please specify. Our vectors have puromycin resistance by default.

If your cells require medium other than DMEM and RPMI, we will also require 1L of the specified medium and any applicable growth factors or supplements to be provided by you for the project. Please submit all components of the complete media (e.g. if growth factors, cytokines etc. are applicable) individually to eliminate potential degradation of components in the media during transit. Kindly include instructions for making the complete media in your shipment. Additionally, please provide at least 5 x coated 6-well plates and 10 x T25 flasks if the cells require specially treated culture vessels. Once you have shipped your cells, please forward us the tracking number for custom clearance. Information on how to ship cell samples to abm can be found on our support page: https://www.abmgood.com/Technical-Support.html

Please place an order first prior to submitting your samples. All samples received must have the order confirmation number indicated. Any samples received without this piece of information will be disposed off immediately upon receipt to ensure that all customer information is held in strict confidence.
Can this service be performed for canine derived cells?
Yes, we can use sgRNA targeting canine genome to make stable KO cell lines. Please provide the specific cell medium for canine cell culture.
What information should I provide to get a quote?
Please complete the Service Questionnaire form under the documents section above and email to quotes@abmgood.com.
Will CRISPR keep cutting the chromosome after the gene is edited?
CRISPR is sensitive to mismatches, so it is unlikely the CRISPR will keep cutting the chromosome after the gene is edited.
Is Nuclease or Nickase used? Can you use the double nickase approach?
The approach used for the above service is sgRNA with Cas9 Nuclease, relying on NHEJ repair without a repair template. The Nickase approach is available but this will be at an additional charge and will be subject to a custom quotation as a different strategy will need to be devised.
Do you provide knock-in cell line generation service?
Yes, but this will be at an additional charge and will be subject to a custom quotation.
How can you detect a mutation if there is no selection (by PCR using primers flanking the modified site or the T7 endonuclease I assay)?
Yes, that is one method used. Other methods include Sanger sequencing, and western blotting if the antibody is provided by the customer.
What are the deliverables?
- Reports on the Cas9-sgRNA vectors used for KO and the sgRNA sequence.
- at least 1 clone, 2 vials per clone
- Sanger sequencing data showing that there are frameshift mutations in each clone

How many sgRNAs are designed and synthesized for this service? Are pooled sgRNAs used?
We design 3 sgRNAs at the time of order placement, however only 1 sgRNA is used to achieve knockout. In the case that the first sgRNA does not allow for success, we would try another from the set of 3 synthesized sgRNAs.
Can you offer off-target site prediction service and off-target site analysis service (Sanger sequence)?
When we design the sgRNAs, the design software will predict the number of off-targets, which is usually 0 for the sgRNAs that we select.

Off-target analysis: This will need to be done by NGS, whole genome sequencing or exome sequencing, which would require comparing the control (before) sample to the genome edited sample (after). If this is a desired option, we can provide a quote for it, but it will likely be at least $2200 for analyzing 1-2 clones by Exome Seq, and higher for whole genome sequencing.
Can you offer this service in bacterial cells?
We offer CRISPR knockout and knockin on a custom inquiry basis. Please contact technical@abmgood.com with your project details.
How is KO confirmed?
We perform Sanger sequencing of the locus of interest both to determine the nature of the INDEL in the edited genes to guarantee frameshift silencing, and to confirm that the genome is edited. For even greater certainty, we also offer Next Generation Sequencing confirmation (AI00100), which can detect WT alleles down to 10% of total. Being much more sensitive, NGS screening is ideal for detecting complete editing of multiple copy genes, or polyploid cell lines.
