Ultra Low Temperature Lab Freezer-510 L

CAT.NOUNITPRICE
Q51261
$9,500.00

Specifications


Description

To support the demand for COVID-19 vaccine storage, our Ultra Low Temperature Lab Freezer is available for only $6,000 USD*! Apply promo code: FREEZERSALE at checkout to activate your limited time promotional pricing*.

*Note: The promotional price for Canada is $7,500 CAD. This offer can NOT be combined with any other promotion or discount, and is not eligible for rewards points. Promotional pricing excludes duties, taxes, and shipping fees.



abm’s -86°C Ultra Low Temperature Lab Freezer is a cost-effective and reliable choice to keep your valuable samples in a safe, temperature-controlled environment. With a wide temperature range of -40°C to -86°C, this industry standard ultra-low freezer can also be used as a general purpose freezer or a low-temperature freezer.

With its precise temperature monitoring and control, this lab grade freezer is suitable for use in research laboratories, universities, hospitals, and pharmaceutical companies. Its upright, free-standing design also provides easy access and organization of samples and lab research products while making the most use out of limited lab space.

This lab freezer is ISO 9001, ISO 14001, ISO 13485, CE, and ETL certified and RoSH compliant. It is also engineered to meet stringent international quality standards, including the UL and CSA standards.

ULT Lab Freezer Features

Key Features

  • 510L / 18.6 cu. ft. Upright ULT Lab Freezer (~40,000 vials, 400 x 2" boxes)
  • Easy-to-use, large 7” touchscreen control panel with user management
  • Lockable door and password-protected settings
  • Built with energy efficiency equivalent to Energy Star standards Green
  • Environmentally friendly RoSH compliant design Green
  • Ships to Canada and the USA
  • Compare this freezer with other freezers on the market

Warranty

  • Limited Parts: 1 Year (up to 5 years*)
  • Compressor: 3 Years (up to 7 years*)

*With extended warranty. Please contact us for more details.

Freezer Model Comparison Guide

⭐⭐⭐⭐⭐

Customer Reviews

"We had the ULT freezer for over a year now with no problems. The cost is very reasonable (much better than big brands) and the most important thing is that it performs equally as well with consistent temperature and with no down-time."

- MT, GenomeMe Lab, Vancouver, Canada


⭐⭐⭐⭐⭐

"Abm freezer has been running non stop for the last 4-5 years without any trouble. We use it quite extensively, and it does get opened a lot. But the temperature goes back very quickly. Overall I have noticed better viability of cells in this freezer."

- Dr. Kshitiz Gupta, University of Connecticut Health Center (view complete product review)


⭐⭐⭐⭐⭐

"Very low noise in the lab, high quality such as the temperature is very stable, easily handling, and trouble free."

- Dr. Yansheng Du, Indiana University (view complete product review)



On-site Freezer Units Available At:
The University of Connecticut Health Center
Indiana University

Please contact [email protected] to arrange for on-site viewing.

SKUQ5126
Additional Information

Ultra Low Temperature Lab Freezer - Parts



Digital Control System

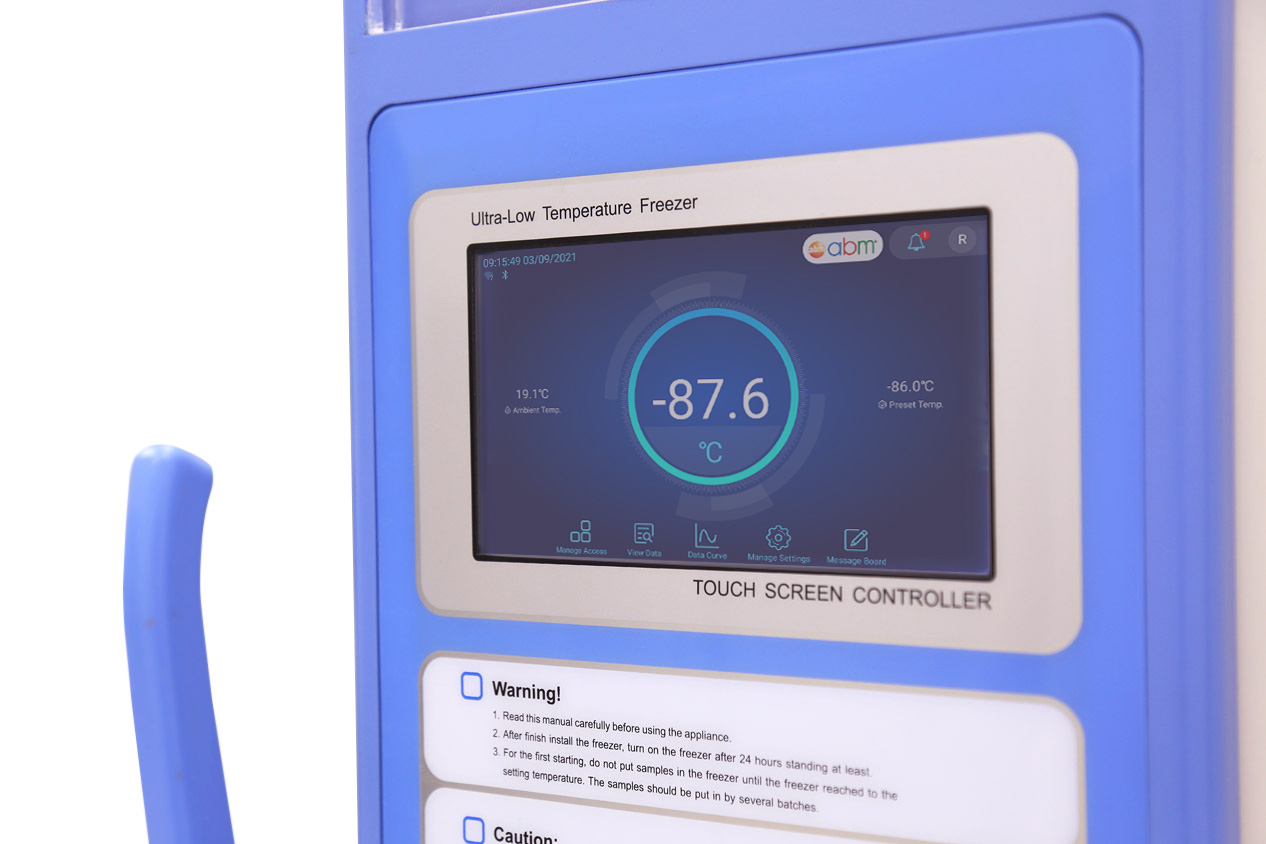

Touch Screen Panel
  • Large 7 inch touch screen control panel
  • Keyboard lock and password protected configuration page to prevent unauthorized changes
  • Adjustable temperature control settings:
    1. • Set temperature between -40°C to -86°C (with precision control to 0.1°C)
  • Delayed start and safe stop interval between restart and termination
  • Temperature monitoring function
    1. • View, store, transfer, or print freezer temperature data log with the use of a USB or by connecting your freezer to a printer
    2. Temperature data is stored for a one year period
  • Intelligent audible and visual alarms
    1. a. High and Low Temperature Alarms
    2. b. Power Failure Alarm
    3. c. Low Battery Alarm
    4. d. Open Door Alarm
    5. e. Blocked Filter Alarm
    6. f. System Failure Alarm
Freezer Structure
Freezer Structure
  • Sturdy design with medical grade stainless steel interior and painted steel outer panel
  • Adjustable stainless steel shelves, giving you the flexibility to have up to 4 freezer compartments
  • Efficient insulation design for improved energy efficiency and temperature uniformity
    1. a. 2 inner insulated compartmental doors
    2. b. 120 mm foam insulation with high-performance vacuum insulated panel (VIP)

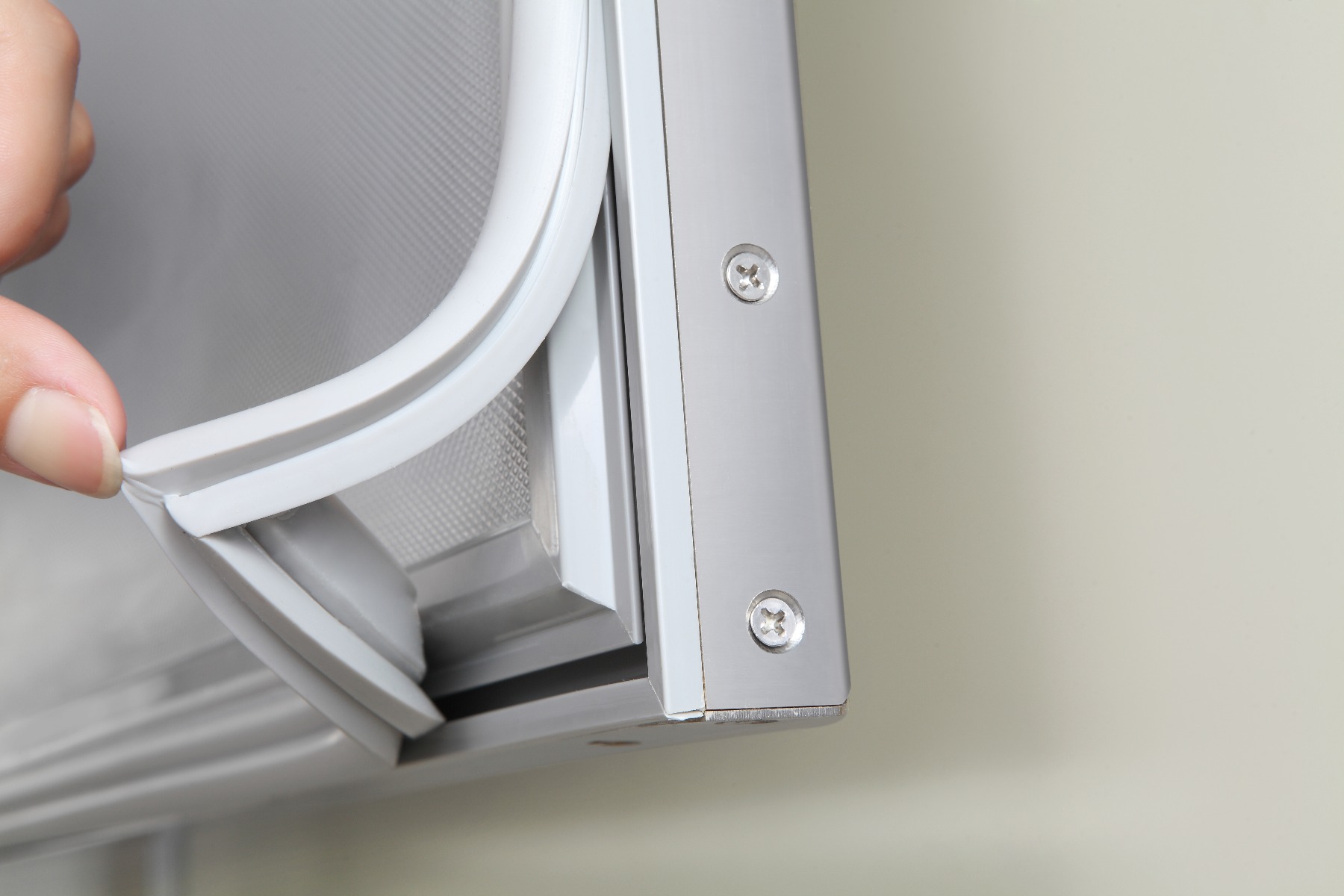

    3. c. Double silicon gasket seal to lock in cold air
    4. d. EBM German high-efficiency fan electromotor
Freezer Structure
  • Lockable front door to keep your materials secure
  • Handle designed for easy opening and closing
  • Built-in clear file folder for convenient storage of your documents and records
  • Built-in caster wheels, levelling legs, and wall fasteners for increased mobility and easy installation
Usage
Storage of bacteria, cells, spores, pollen, protozoa, DNA, tissue (RUO), vaccines, nucleic acids (DNA/RNA), proteins, biological fluids, biomedical products, oceanic products, electronic devices
Can be used for low temperature scientific experiments and low temperature testing of special materials
Appropriate for blood banks, hospitals, university laboratories, military industries, pelagic fishery industries, sanitation industries, electronic industries, and more
Additional Specifications
QuantityPart Included
1 Ultra Low Temperature Lab Freezer - 510L
3 Shelf (Adjustable)
1 Ice Scraper
2 Additional access port inside cap
1 Wrench
2 Door Keys
1 USB Drive + Data Reader Program
1 User Manual

Product Specifications
Product type Upright laboratory freezer
Storage capacity 510 L or 18 cu. ft. (around 40,000 vials or 400 x 2" boxes)
Color Freezer Color Swatch Clean light beige with blue panel
Installation type Free-standing with built-in wall fasteners
Electrical Requirements
Voltage rating 220V 60Hz, 6.5A
Input power 1300 W
Plug style NEMA 6-15
Power supply connector location Rear
Freezer Specifications
Temperature range -40°C to -86°C
Compressor Adapted Embraco Compressor
Fan Motor EBM German high-efficiency fan electromotor
Defrost Manual
Shelves 3 adjustable shelves included (4 freezer compartments). Maximum load capacity for the bottom shelf is 110 kg.
Built-in alarms
  • High- and low-temperature alarm
  • Power failure alarm
  • Low battery alarm
  • Open door alarm
  • Blocked filter alarm
  • System failure alarm
Lockable front door Yes, 2 door keys included
Door swing type Right-hand swing
Refrigerant CFC-free Mixed Gas Refrigerant Green Environmentally Friendly
Foam insulation 120 mm VIP insulation panels with HFC-free Cyclopentane insulation foam Green Environmentally Friendly
Sound level ~48 dBA
Energy consumption 8.5 kWh/day Green 2X More Energy Efficient!
Access ports 2 included (1 at the back and 1 at the side)
Built-in breaker For automatic freezer protection against damage caused by high currents
Battery 24 hour rechargeable back-up battery
Controls
Controls 7" touch screen control panel
Adjustable temp. control Yes, with precision control to 0.1°C increments
Lockable control panel Yes, keyboard and password protection system included
General Specifications
Exterior dimensions (d x w x h) 41 x 36.6 x 76.7 in (104.1 x 93.0 x 194.5 cm)
Interior dimensions (d x w x h) 27.4 x 23.0 x 49.8 in (69.6 x 58.5 x 126.6 cm)
Net weight 705.5 lbs (320 kg)
Gross weight 756.2 lbs (343 kg)
Certifications ISO9001, ISO14001, ISO13485, CE, TUV, and ETL certified and RoSH compliant.

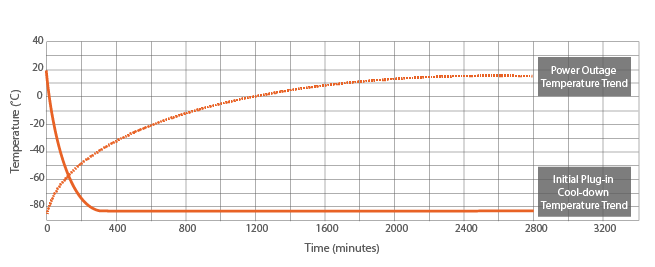

Temperature increase/decrease test map:

Temperature increase and decrease test map

Vaccine Storage Capacity:

Ultra Low Temperature Lab Freezer Vaccine Storage Capacity

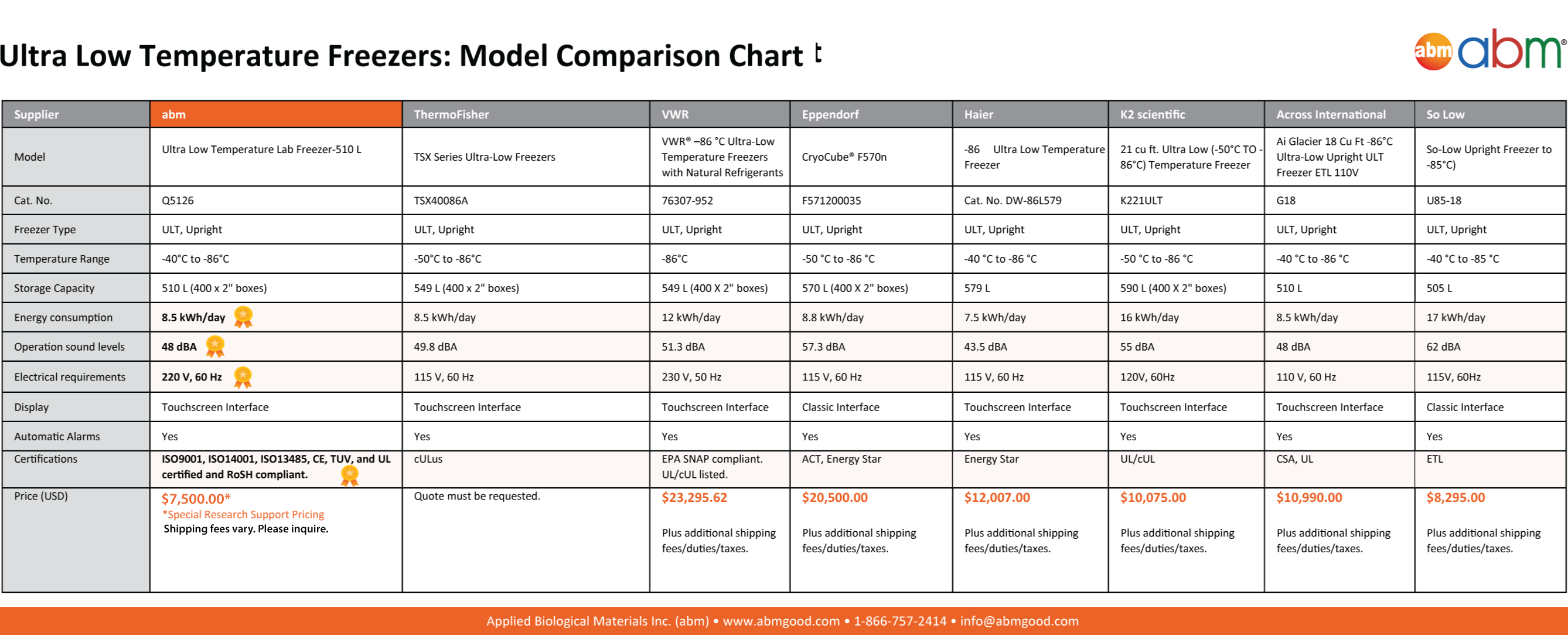

Compare this freezer with other freezers on the market:

View full comparison chart.

Freezer Model Comparison - Portion

To support the demand for COVID-19 vaccine storage, our Ultra Low Temperature Lab Freezer is available for only $6,000 USD*! Apply promo code: FREEZERSALE at checkout to activate your limited time promotional pricing*.

*Note: The promotional price for Canada is $7,500 CAD. This offer can NOT be combined with any other promotion or discount, and is not eligible for rewards points. Promotional pricing excludes duties, taxes, and shipping fees.

DefrostManual
Unit quantity1
FAQs


What are the electrical requirements for Q5126?
The freezer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. A 220 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. Rated voltage: 220V AC Rated Current: 5.8 A Rated Frequency: 60 Hz
Is there any warranty on the Freezer?
The purchase comes with 1 year limited parts and 3 years on the compressor. You can file a claim with us if you experience any issues with the freezer. Our specialist will provide free consultation and if necessary be onsite (within North America) for any repairs. Extended warranty can be purchased for additional 2 years (for a total of 3 years) at $1750.00 USD.
What is the storage capacity of the Freezer?
The available storage space in the Freezer is 510 L, and it may hold up to approximately 40,000 vials of samples.
Is this freezer frost-free?
This freezer requires manual defrosting. Most -86 freezers do not have an automatic defrost function. This is because the mechanism is different: -86C freezers use direct cooling system while auto-defrost freezers (-20C to -40C) are based on forced air circulation system.
How long does it take for the freezer to go down to a setpoint?
The "pull down" time is the time required to go down from ambient temperature to a setpoint once the freezer starts to work. Our freezer has an average is 400 mins from 25C to -80C. The "pull up" time, on the other hand, is the time required to go up from the setpoint (-86C) to ambient or other set temperatures (like -40C) while the power is off. For this model, the average time is 350 mins from -80C to -40C in a condition of 25C ambient temperature.
What is the door opening recovery time?
This varies depending on the surface area that comes into contact with the outside air (i.e. how wide the door is open), as well as the content that is put into the freezer (i.e. if boxes or racks are pre-chilled). Given extreme situation, it takes 25 mins for our freezer to recover to the setpoint temperature -86C after having the door opened for 2 mins at 25C ambient temperature.
How loud is the freezer (in decibels or DBA)?
Our freezer is very quiet and it is measured to be approximately 55 Decibels.
Will the alarm work wirelessly to notify us through email or text message?
Currently the telecommunication function is not supported. You can set the freezer to alarm if it goes above or below a certain temperature.
What are excluded from the ‘limited parts’ warranty?
Please find the exclusions of the warranty below: As a condition of this warranty, the customer is responsible for properly using, maintaining, and caring for the freezer. Periodic removal of ice build-up and adjustment of door handles and/or latches are considered routine maintenance on the equipment and is excluded from this warranty. This warranty does not cover: • Calibration • Accident • Misuse • Fire • Flood • Other Acts of God • Incorrect line voltages • Damage caused by improper installation • Improper or unauthorized repair • Broken or marred cabinet • Torn gaskets or seals, accessories • Filters For full details, please refer to the document section for Ultra Low Temperature Lab Freezer Manual and Equipment Terms and Conditions.
Can you tell me more about the Pressure Equalization Port? We have a different freezer and port freezes up and we can't open the door. I want to buy a freezer that will not have this problem.
Our Q5126 freezer door is equipped with a self-defrosting feature, and we have not experience any issue with the freezer door freezing. That said, we would also advise to avoid repeated openings/closings of the freezer door (i.e. allowing approximately 5 minutes in between).
How many shelves are included in the Q5126 freezer?
Our freezer comes with 4 stainless-steel shelves that can be adjusted, depending on your needs.
Does the freezer fit through a 34 inch door (standard size for laboratory entrances)?
The external dimension of the freezer is about 36.6 inches wide; but the freezer handle is removable such that the body of the freezer can fit through a 34 inch door. A standard wrench and hex screwdriver can be used to remove the handle and the lock hardware (be sure not to over-tighten when replacing it). Many lab doors are standardized to 34" so this will go through the doors. Depending on the space and the items behind the door in the lab, we find it helpful if we open the freezer door and turning it while pushing it into the lab.
Does the freezer use Freon?
Our freezer uses CFC-free refrigerant. Freon is a trade name for a class of chemicals known as Chlorofluorocarbons or CFC's. This is in an effort to reduce Ozone depletion. The exact name of the refrigerant is proprietary and cannot be disclosed as this is a licensed material.
Is your freezer CSA or UL approved?
Freezer Certifications include: ISO9001, ISO14001, ISO 13485, CE, TUV While our freezer is not CSA or UL approved, it is ETL certified by Intertek. Intertek which manages the ETL label is an independent testing agency and it, like UL, uses standards set by Underwriter Laboratories (UL). Therefore, our freezers are certified to meet UL and CSA standards.
What kind of battery is used for the freezer?
There are two units of 12V back up battery, which is used to power the alarm system in case of power failure.
